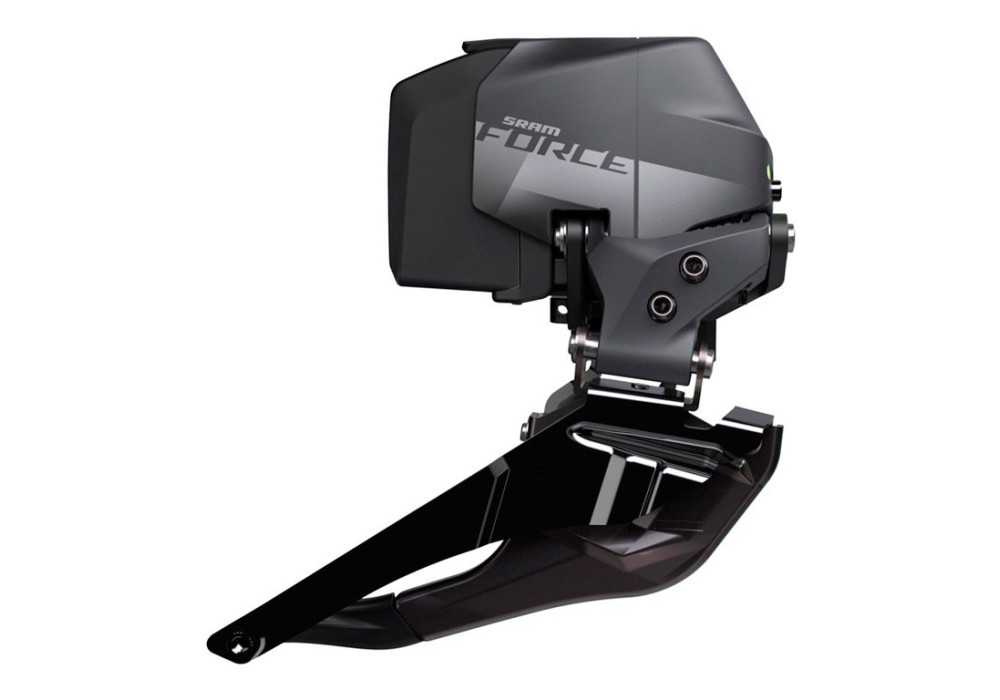

FRONT DERAILLEUR SRAM FORCE AXS

Specs:

• Series: FORCE eTap AXS
• Field of application: Road, Gravel, Cyclocross
• Transmissions: 2-speed (in combination with 12-speed)
• Chain Support Angle: 61 - 66°
• Chainline: 47.5 mm
• Maximum chainring size: 43 teeth
• Capacity: 13 teeth
• Movement: Down-Swing
• Fixation: Welded
• Compatibility: eTap AXS FORCE Groups

Technical data:

• Outer parallelogram material: Aluminum
• Interior parallelogram material: Aluminum
• Guide plate material: Aluminium

Compatibility:

• compatible with the SRAM FORCE Wide DUB 2x12-speed crankset
• compatible with current eTap batteries
• with any frame with weld attachment for the 2-speed front derailleur

Features:

• Easy customization with SRAM AXS
• Cover freedom up to 700 x 45C or 27.5 x 2.1"
• the classic SRAM Yaw cage technology with an optimized architecture for a new chainring combination

Technologies:

eTap™:

The SRAM eTap is simple, unambiguous, and intuitive switching logic. With the left gear lever you drive the gear system inwards to a larger sprocket, with the right gear lever outwards to a smaller sprocket. With the gear lever pressed, you can directly shift multiple gears. Pressing both gear levers at the same time produces a 2-speed derailleur movement.

AXS:™

AXS is SRAM's new electronic integration platform, which combines bicycle electronics with software. The SRAM AXS app allows you to view battery status, change component behavior, adjust controls, receive maintenance reminders, and update firmware.

Yaw™:

The Yaw's technology allows for a gear shift without the need for cutbacks, as the front derailleur cage describes an arc and is therefore kept at a constant angle to the chain. Shift transitions are thus more direct and precise, ensuring unrivalled performance when shifting at the front.
